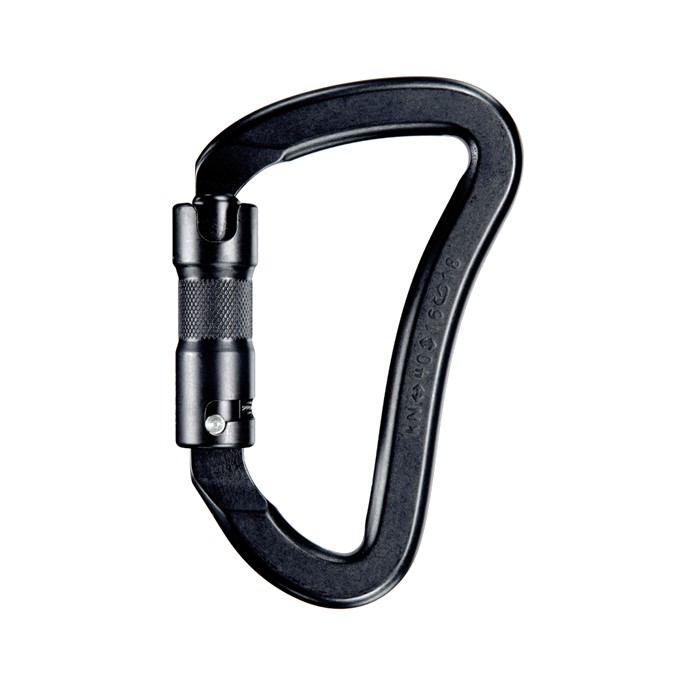

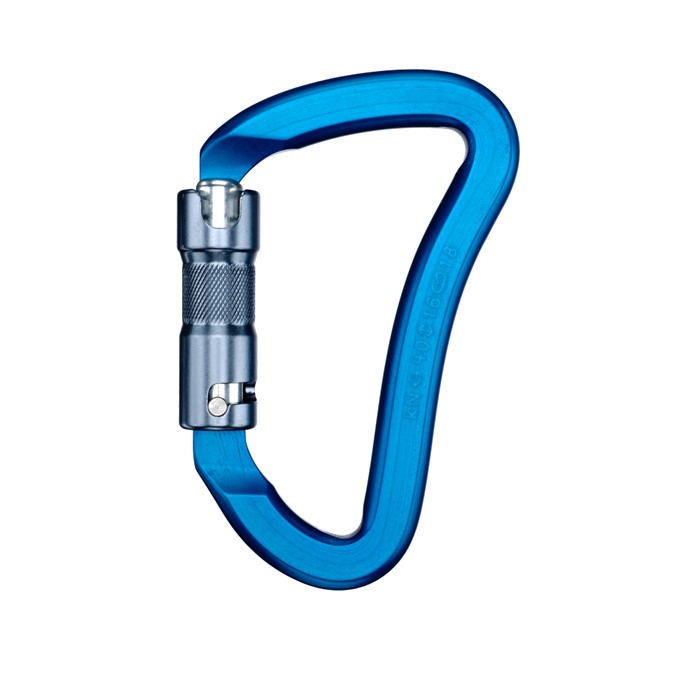

SMC Crossover Series Tri-Lock

from$43.95
SKU:
Color:
Key features:
  • Key lock.
  • Lightweight design.
  • Two color options, black or blue.
  • Enhanced frame design to allow for 1" gate opening.
  • New frame and gate design for single hand operation.
  • Three gate options (screw-lock, dual-lock and tri-lock).
  • UL Certified to meet NFPA 1983 "G" general use.
  • Dual-Lock and Tri-Lock versions meet ANSI Z359.1.
  • Made in USA.

These carabiners feature a new ergonomic single hand frame geometry allowing easy single-hand operations. The CrossOver has been specifically designed to meet all your work environment safety needs. Easy to use Dual or Triple Auto-Locking sleeves allow for single hand operations while working in mission-critical environments. Dual-Lock and Screw-Lock versions are also available.



Tags:
Weight 0.358 lbs
Color

Black, Blue
Brand

Width

3.35” (8.5 cm)
Length

5.53” (14.0 cm)
Major Axis MBS

40 kN (8992 lbf)
Minor Axis MBS

16 kN (3600 lbf)
Gate Open MBS

18 kN (4046 lbf)
Gate Opening

1.00” (25.4 mm)
Weight

5.1 oz (145 g)
Compliant

ANSI Z359.1 (2007), BERRY COMPLIANT, NFPA 1983 (2017), G

These carabiners feature a new ergonomic single hand frame geometry allowing easy single-hand operations. The CrossOver has been specifically designed to meet all your work environment safety needs. Easy to use Dual or Triple Auto-Locking sleeves allow for single hand operations while working in mission-critical environments. Dual-Lock and Screw-Lock versions are also available.



Call 1706-764-1437 to inquire about this items Instruction Sheet.
